9288-000 Series | Hermaphroditic WTW & WTB Connector
KYOCERA AVX is expanding its product offering with the 9288-000 series of Hermaphroditic connectors. This two-piece wire-to-wire and wire-to-board solution utilizes our proven Poke-Home technology for easy wire installation in the field. Wire-to-wire termination is performed using two identical parts mating with each other, resulting in only one part number on the bill of materials. Wire-to-board connection is accomplished with the same part as with wire-to-wire but mating to an SMT version soldered to the PCB.

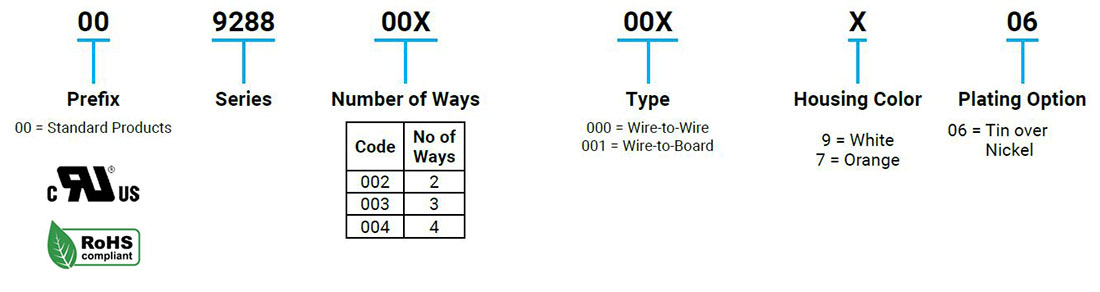

The 9288-000 series features plastic latches for good mechanical retention. Available from 2 to 4 positions with a wire gauge range of 16 to 18 AWG, solid or stranded wires, on a 5mm pitch. There are two housing color options (orange or white) and plating is tin over nickel.
Quickly & Accurately Select the Right Part Based on Key Attributes
With intuitive, drop-down filtered search and selection, KYOCERA AVX's Component Search Tool allows users to narrow search criteria quickly and efficiently based on available product attributes. Immediately access complete part number details, datasheets and available inventory with every search result. Choose the initial product, category and type to find products based on your specific criteria.
