KGP Series | Stacked Ceramic Capacitors

Product Type: Capacitor
Technology: Multilayer Ceramic Capacitor (MLCC)
Style: Stacked Chip
Grade: Commercial
Dielectric: C0G, X7R, X7T
Rated Voltage: 50V – 1500V
Operating Temperature: -55°C to +125°C
SKU: KGP Category:

Description

Overview:

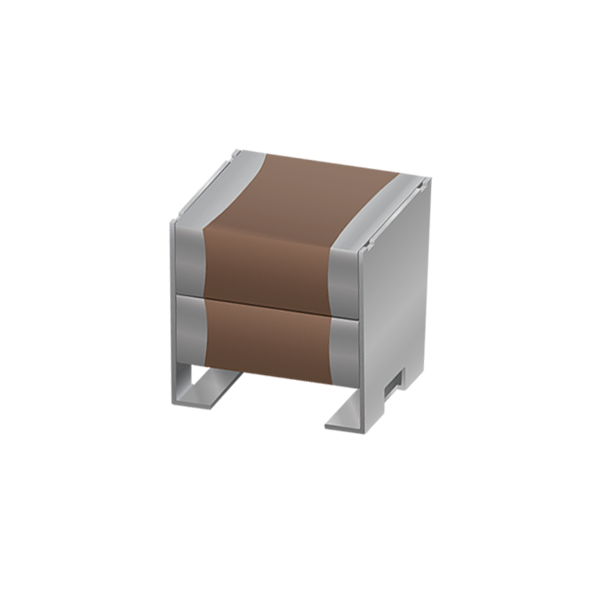

KGP Series | Stacked Ceramic Capacitors

Stack Capacitor, KGP series are designed for high frequency operations, such as a rectifier power supply. This series is manufactured using green materials without lead and cadmium. By having the metal lead frames, it allows for the capacitor to absorb both heat and mechanical stress. This series also features low ESR and ESL.

For more information about KYOCERA AVX Ceramic Capacitors, visit our ceramic capacitor portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • High cap value in same mounting area
  • Excellent bending stress
  • Restrain noise
  • Suppression of weld cracking by thermal stress
Typical Applications:
Typical Applications:
  • Power Supplies
  • DC-DC Converter
  • High Voltage Coupling / DC Blocking
  • Industrial Control Circuits
  • Down-Hole Application
  • EV Application

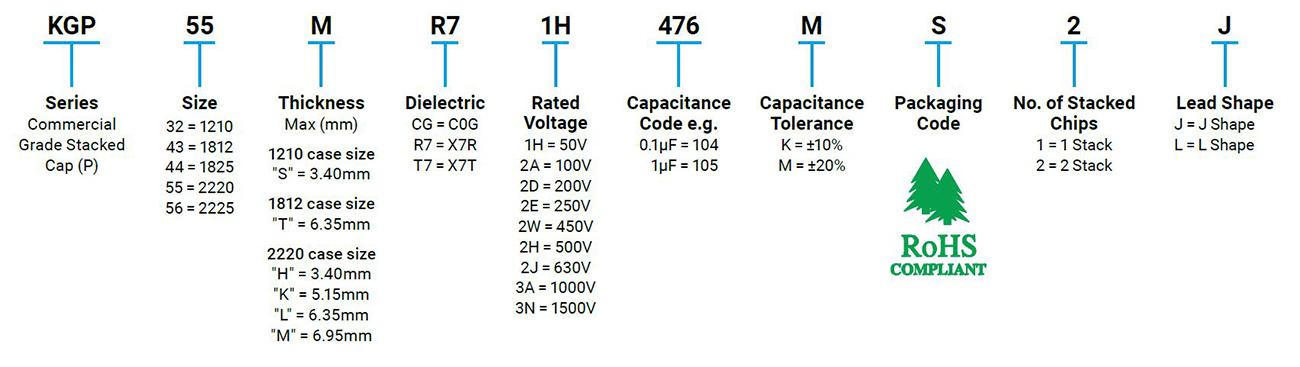

P/N Information

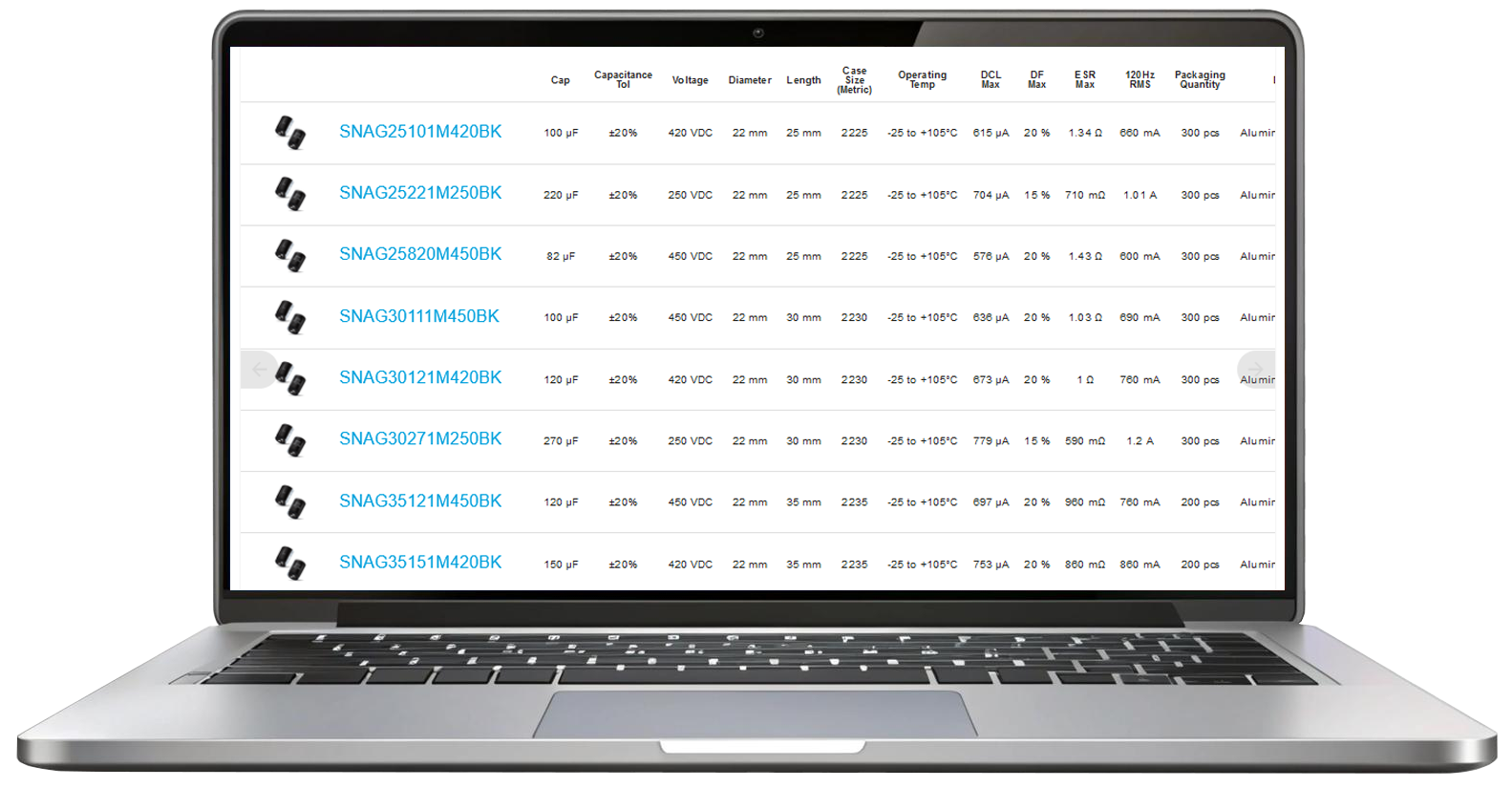

KYOCERA AVX Parametric Search Tool

Quickly & Accurately Select the Right Part Based on Key Attributes

With intuitive, drop-down filtered search and selection, KYOCERA AVX's Component Search Tool allows users to narrow search criteria quickly and efficiently based on available product attributes. Immediately access complete part number details, datasheets and available inventory with every search result. Choose the initial product, category and type to find products based on your specific criteria.

Begin Search
