Features & Benefits
- Robust design for long operation lifetime
- Volumetric efficiency
- Statistical screening with Accelerated Ageing
- Surge testing level option
- Several Reliability screening levels available
- Operating Temperature: -55 to +125°C
- Shock & Vibration by MIL-STD-202
- Low ESR
- 3x reflow cycles according to J-STD-020
- High frequency capacitance retention
Typical Applications
- DC/DC converter
- Signal Processing
- Industrial
- Avionics
… & other special applications

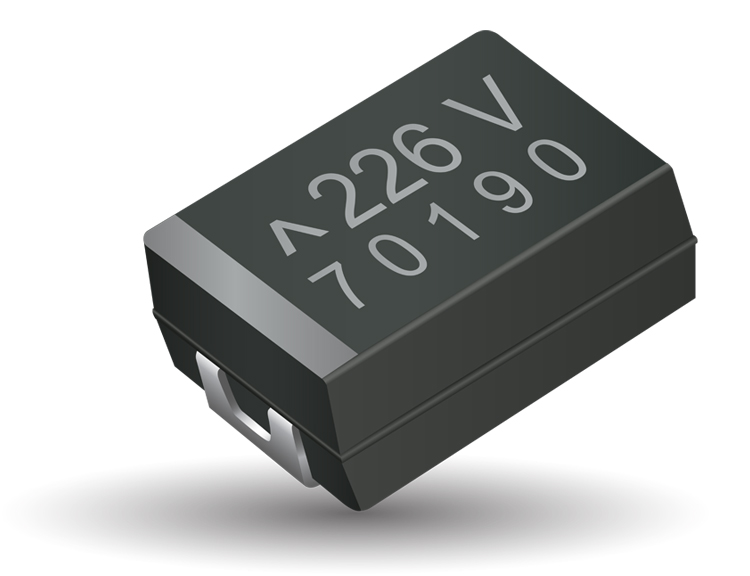

TCS is a COTS Plus upscreened version of TCM conductive polymer multianode series designed for use in demanding industrial and high reliability applications requiring extremely low ESR, with stable and high frequency capacitance retention performance. All parts are subjected to KYOCERA AVX’s maverick part control with statistical screening and process control enhancements. The series exhibits improved basic reliability and also offers additional extended reliability grades (FRL) upon request. Robust J-lead design for long operation lifetime. Rated for operation up to 125°C. Surge screening and SnPb plating is optional.
Datasheet / Catalog – Click to Download
Technical Information – Click to Download

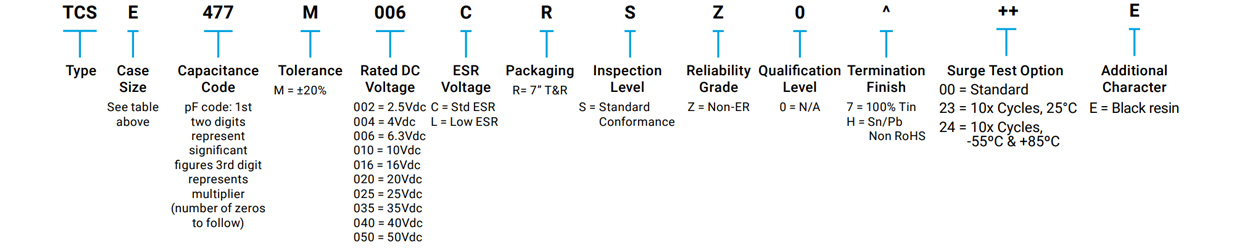

Part Number Information
Technical Papers – Click to Download
- Basic Tantalum Capacitor Technology
- New Tantalum Technologies: Tantalum Polymer and Niobium Oxide Capacitors
- DC/DC Converter Output Capacitor Benchmark
- Conductive Polymer Capacitors Guidelines
Please click here for an outside link to the article “Increased Voltage Capability of Tantalum Polymer Capacitors Opens Up New Applications” on ECN.
